series 200 small pressure regulators pressure reducer

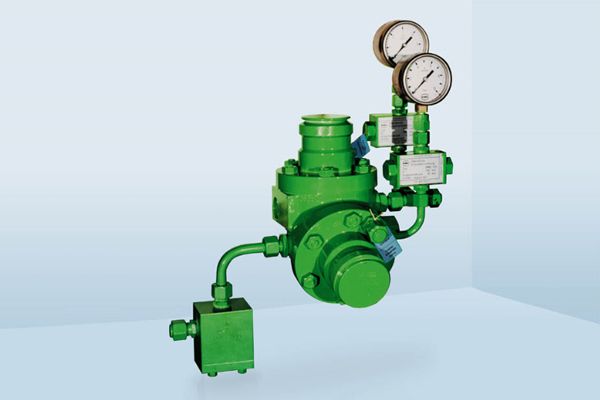

HON 210 (R 10 d)
HON 210 (R 10 d) is a direct-acting pressure reducer with fine mesh filter HON 905 according to DIN EN 334. It is suited for use at industrial facilities, laboratories, and low-load lines in large gas pressure regulating stations.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features and Benefits:
- Low inlet pressure dependence
- Two-stage device
- Optional internal/external measuring impulse connection
- Easy operation and monitoring
- Suitable for non-aggressive gases, other gases on enquiry
- CE registration according to PED
- Max. admissible pressure PS: 100 bar
- Max. inlet pressure pu max: up to 100 bar
- Outlet pressure range Wd: 0.01 bar up to 3.5 bar
- Class of lock-up pressure zone: SZ 2.5
- Connection - Pipe connections according to DIN EN ISO 8434-1 (DIN 2353), for pipe diameters; Inlet: 12 mm; Outlet: 16 mm
- Valve seat Ø = 6 mm
- KG = 16 m³/(h ⋅ bar)
